IP Office Advanced Communications System

IP Sets

Avaya 9620L IP Phone

The Avaya 9620L is a popular IP Phone that is feature rich and perfect for most phone users.

3.45” VGA Gray Scale Display
Full Duplex Speakerphone
Two message waiting indicators
Four way navigation cluster button
Four contextual softkey buttons
Avaya Menu button (browser, options and settings access)
Compatible with Avaya Communication Manager Release 3.0 or greater and IP500/IP500V2 Release 6.0 & higher
Lite version, does not support USB or Add-On Devices
Ethernet (10/100) line interface with secondary Ethernet interface
Requires 1151D1 or PoE
Class 1 PoE for lower power consumption
Avaya IP Phones require an Avaya IP Phone license when used on the IP500 & IP500V2 with Release 6.0 & higher
Manufacturer part # 700461197

For more information:

Avaya 9620 one-X Deskphone Series

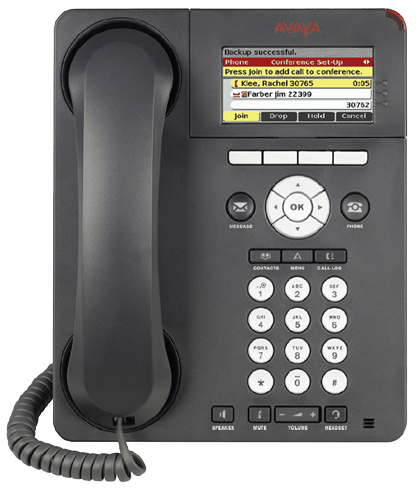

Avaya 9620C IP Phone

3.45” VGA Color Display
Full Duplex Speakerphone
Two message waiting indicators
Four way navigation cluster button
Four contextual softkey buttons
Avaya Menu button (browser, options and settings access)
Compatible with Avaya Communication Manager Release 3.0 or greater and IP500/IP500V2 Release 6.0
Ethernet (10/100) line interface with secondary Ethernet interface
Requires 1151D1 or PoE
Class 2 PoE
Avaya IP Phones require an Avaya IP Phone license when used on the IP500 & IP500V2 with Release 6.0 & higher
Manufacturer part # 700461205

For more information:

Avaya 9620 one-X Deskphone Series

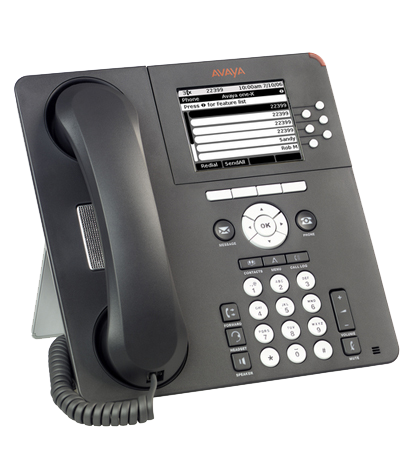

Avaya 9630G IP Phone

3.8" grayscale backlit VGA display
Six line appearance buttons with LEDs
Full duplex speakerphone
Two adapter interfaces
USB interface supports USB 1.1 compatible thumb drives for personal contacts
Supports three 24-button expansion modules
Class 2 PoE
Compatible with Avaya Communication Manager Release 3.0 or greater and IP500/IP500V2 Release 6.0
Ethernet 10/100/1000 Mbps with a secondary GigE port for workstation or PC
Requires 1151D1 or PoE
Manufacturer part # 700408602

For more information:

Avaya one-X 9630G Deskphone Brochure


Avaya 9640 IP Phone

The Avaya 9640 Deskphone (700383920) is designed to meet the needs of the essential telephone user.

Modular Design
24 Call Appearance and Feature Keys
1/4 Color VGA Display
Wideband Speakerphone
Unique Mobility Button
One Touch Access
Ethernet (10/100) line interface with secondary Ethernet interface
Compatible with Avaya Communication Manager Release 3.0 or greater and IP500/IP500V2 Release 6.0 or higher
Requires power from 1151D1 or PoE
Manufacturer part # 700383920

For more information:

Avaya one-X 9640 Series Deskphone

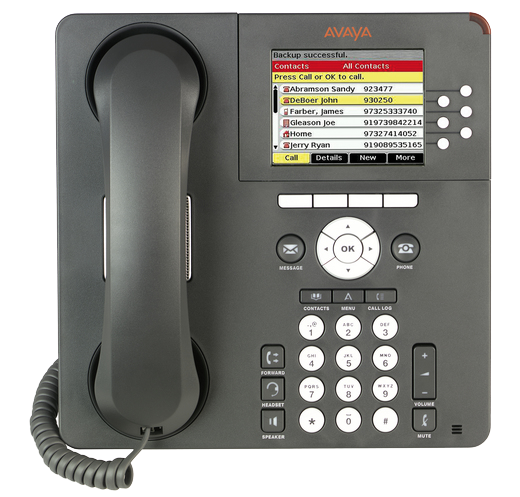

Avaya 9640G IP Phone

The Avaya 9640G offers a large color display and Gigabit connectivity.

3.8” VGA color display
Six line appearance buttons with LEDs
Full duplex speakerphone
Two message waiting indicators
Four-way navigation cluster button
Four contextual softkey buttons
Forward/mobility button (LED)
Avaya Menu button (browser, options and settings access)
9640G supports 10/100/1000 Mbps with a secondary GigE port for workstation or PC
Supports three 24-button expansion modules
Two adapter interfaces
USB interface
Compatible with Avaya Communication Manager Release 3.0 or greater and IP500/IP500V2 Release 6.0
Class 2 PoE
Requires 1151D1 or PoE
Manufacturer part # 700419195, 9640GD01A

For more information:

Avaya one-X 9640 Series Deskphone

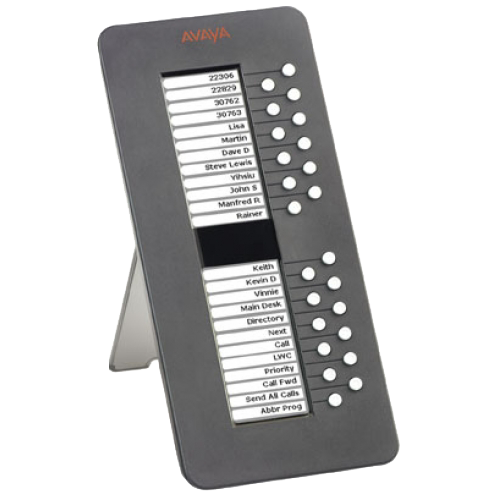

Avaya SBM24 Button Expansion Module

Avaya SBM24 for 9600 Series Deskphones.

24-Button Module
Two Backlight LCS Screens for buttons labels
Buttons labeled from system
Powered from 9630G, 9640, 9650, 9650C Telephones via the Module Interface
Max of 3 SBM24's can be installed on a single phone

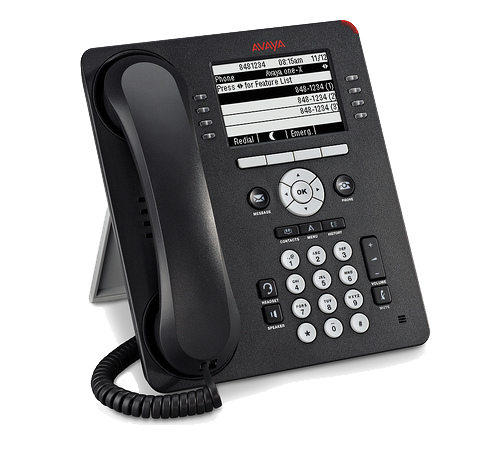

Avaya 9608 IP Deskphone

The Avaya 9608 IP Deskphone (700480585) is cost effective yet highly functional phone for businesses of all sizes.

Features:

3.2" x 2.2" Display, Monochrome
8 buttons with dual LEDs
Softkeys: 4
Fixed feature buttons: phone, messages, contacts, history, home, headset, speaker, volume, mute, call log
Intuitive navigation cluster
Wideband audio codec
Full duplex speakerphone
Message waiting indicators
Built-in two port Ethernet (10/100 Mbps) switch
Built-in headset interface
Requires PoE or Power Injector (700500725)
Supports up to 3 BM12's or SMB24's
Supported on IP Office 8.0(43) and higher
Requires IP500 & IP500V2
H.323 version support on Communication Manager 3.1.4 or later
SIP Version supported on ACM 6.0 w/ Avaya Aura Session Manager 6.0 or Avaya Midsized Business Template 5.2.1

Avaya 9608 IP Deskphone Brochure


Avaya 9611G IP Deskphone

The Avaya 9611G IP Deskphone sports an amazing Color Display and a large list of features, making it perfect for most phone users.

Features Include:

2.8" x 2.1" Color Display
8 Buttons with Red/Green LED's
4 Softkeys
Speaker, Mute, Volume, Headset, Contacts, Home, History, Message & Phone buttons
Navigation Cluster
Wideband audio in handset & headset
Full Duplex Speakerphone
Dual 10/100/1000 Ethernet interfaces
USB application support
Two message waiting indicators
Bluetooth & DECT headsets support with additional adapter
Wall Mount Option
Dual Position Stand
Supports up to 3 BM12 Expansion Modules

For more information :

Avaya 9611G IP Deskphone Brochure

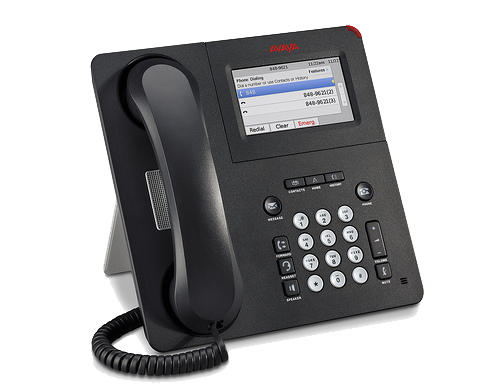

Avaya 9621G IP Phone

The Avaya 9621G IP Phone is ideally suited for people that spend a lot of time on the phone offering enhanced productivity at a cost effective price.

Features Include:

3.7" x 2.1" Color Graphical Display
Touch Screen
Adjustable, Tilting Display
Speaker, Mute, Volume, Headset, Contacts, Home, History, Message, Forwarding, Volume & Phone buttons
Separate volume adjustments for handset, speaker, ringer & headset
Red LED on speaker, mute, headset, message & history
24 Administrative buttons
Wideband speakerphone
BlueTooth & DECT Headset Support (with adapter)
Two Message Waiting indicators
Desktop or Wall Mount (included)
Dual 10/100/1000 Gigabit Ethernet
Support for PoE
AC Adapter sold separatley (see below)
Avaya Flare Experience supported on SIP version

For more information :

Avaya 9621G IP Phone Brochure

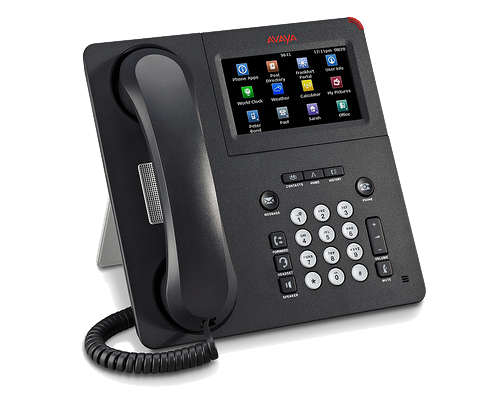

Avaya 9641G IP Deskphone

The Avaya 9641G offers all the capabilities needed by users who spend a lot of time on the phone. From the amazing Touch Screen Color Display to the Wideband Speakerphone this premium phone offers everything you need.

Features Include:

Touch Screen Color Display (4.1" x 2.3")
Adjustable Tilt Display
Dual Gigabit Ethernet (10/100/1000)
Configurable line appearance & feature key buttons
Speaker, Mute, Volume, Headset, Contacts, Home, History, Message, Forwarding & Phone buttons
Separate Volume for handset, speaker, ringer & headset
Red LED for speaker, mute, headset, message & history
24 Admin buttons with 5 lines displayed
2 message waiting indicators
360 degree visual alert for MW & incoming calls
Desktop or wall mount (included)
Bluetooth & DECT headset support w/ adapter
PoE 802.3af class 2 device
Avaya Flare Experience in SIP mode
Supports 3 max BM12 (see below)

For more information :

Avaya 9641G IP Phone Brochure


Avaya BM12

The Avaya BM12 increases the functionality of your 9508, 9608, 9611G and 9641G phones on IP Office.

Connects to 9508, 9608, 9611G and 9641G Phones
12 Dual status LEDs
Edit button
2 Pages of 12 buttons, for 24 total buttons
Maximum of 3 BM12 per phone
Maximum of 32 BM12's per IP Office system
Requires 1151C1 power when used with 9508 phones
Max of 32 BM12's can be installed on a single IP Office
Requires IP Office Release 8.0(42) or higher

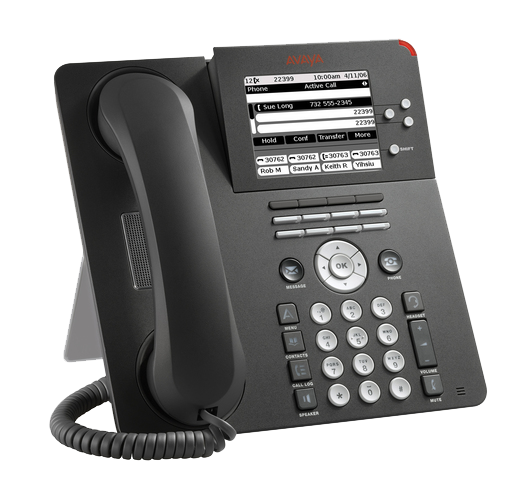

Avaya 9650 IP Phone

Backlit Display
3 Line Appearance Buttons w/LEDs
Full-Duplex Wideband Speaker Phone
Two Message Waiting Indicators
Innovative Dual Position Flip Stand
4-Way Navigation Cluster Button
4 Contextual Softkey Buttons
Ethernet (10/100) Line Interface with Secondary Ethernet Interface
Module Interface to support Add-Ons
Compatible with Avaya Communication Manager Release 3.0 or greater and IP500/IP500V2 Release 6.0
Requires either 1151D1 or PoE for power
Manufacturer part # 700383938

For more information:

Avaya 9650 One-X IP Deskphone Brochure

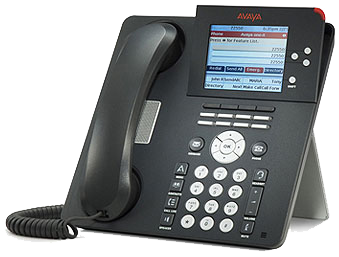

Avaya 9650C IP Phone

3.8” color VGA display
Three line buttons with LEDs
Eight Programmable feature keys (Softkeys); max. 16 partners
Full duplex speakerphone
Two message waiting indicators
Four-way navigation cluster button
Four contextual softkey buttons
Avaya Menu button (options and settings access)
Supports three 24-button expansion modules
Two adapter interfaces
USB interface
Ethernet (10/100) line interface with secondary Ethernet interface
Class 2 PoE
Requires 1151D1 or PoE
Compatible with Avaya Communication Manager Release 3.0 or greater and IP500/IP500V2 Release 6.0
Manufacturer part # 700461213

For more information:

Avaya one-X 9650 Series Deskphone
